Plexor® HY System

The Plexor® HY System is a real-time PCR assay to determine the concentration of total human DNA and male human DNA simultaneously in one reaction. The kit contains an internal PCR control (IPC) to test for false-negative results that may occur in the presence of PCR inhibitors and a melt curve function to confirm that the correct product was amplified.

Description

The Plexor® HY System is a real-time PCR assay to determine the concentration of total human DNA and male human DNA simultaneously in one reaction. The kit contains an internal PCR control (IPC) to test for false-negative results that may occur in the presence of PCR inhibitors and a melt curve function to confirm that the correct product was amplified.

Plexor® HY is a sensitive multiplex kit that routinely detects approximately 6.4pg of total DNA. PCR setup is performed at room temperature and is compatible with automated platforms.

The system works by measuring a reduction in fluorescent signal during amplification. Amplification of each target uses only two primers, one of which contains both a fluorescent tag and a modified base. As amplification proceeds, fluorescence is reduced by site-specific incorporation of a fluorescent quencher opposite the complementary modified base. The quencher is in close proximity to a fluorescent dye located on the end of the primer, resulting in a reduction of fluorescent signal. After PCR, a melt analysis can be performed to provide an internal control for the final assay design or to expedite troubleshooting.

The Plexor® HY System is optimized for use on the Applied Biosystems 7500 and 7500 FAST real-time PCR systems and Stratagene Mx3005P® and Mx3000P® qPCR systems. For information about use with other qPCR instrumentation, contact Promega Technical Services.

The Plexor® Analysis Software is available for free download. The unique functions of this software allow you to quickly and easily review data and create reports. Replicate samples are automatically averaged, template amounts are calculated and the necessary volume of DNA is displayed for your optimized STR amplification conditions.

Features – Benefits

  • Simultaneously Quantify Autosomal and Y-Chromosome DNA : Less variability, less time, more valuable data.
  • Consistently and Reproducibly Detect 6.4pg of DNA : If you can’t detect it with Plexor® HY, you can’t detect it with your STR system.
  • Be Confident in Your Data : Internal positive control and melt-curve analysis guard against false-negative and false-positive results.
Product Size Brand Catalog

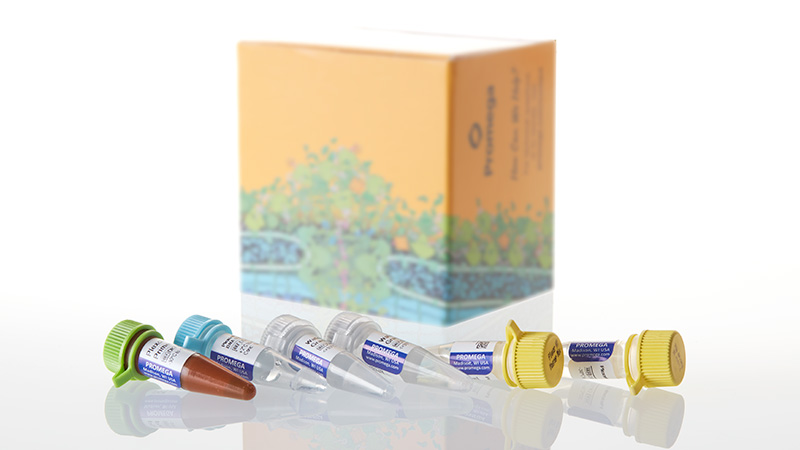

Plexor® HY System 200 reactions Promega DC1001
Plexor® HY System 800 reactions Promega DC1000

Available Separately

Product Size Brand Catalog
Plexor® Calibration Kit, Set A 1 each Promega DC1500
Water, Amplification Grade 6,250μl
(5 × 1,250μl)
Promega DW0991

Additional information

Brand

Promega
