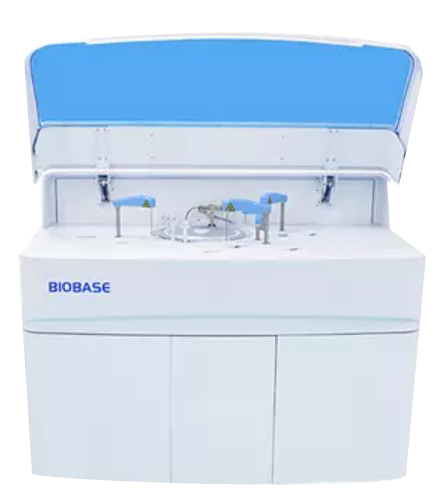

Auto Chemistry Analyzer BK-1200

Add to quote
Category:

Description

Features:

  • 150 Sample positions.
  • 160 Reaction cuvettes.
  • 180 Refrigerated reagent positions.
  • Optical filter/fiber bragg grating selectable.
  • 800 Tests per hour 1200 Tests with ISE module.
  • Built-in sample barcode system optional.
  • Probe with anti-collision function, liquid level detection function.

Models:

Model BK-1200
Overall
Performance		 Throughput 800Tests/hour, 1200Tests/hour with ISE(Optional)
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certificates CE, FDA, ISO9001, ISO14001, ISO13485
Sample & Reagent System Sample Positions 150sample positions
Reagent Position 180reagent positions
Sample Volume 1-70μL
Reagent Volume 10-350μL
Probe Teflon coating,withanti-collision function,Liquid level detectionfunction
Probe Washing Automatic washing interior and exterior
Reagent Cooling Refrigerated tray with independent switch
Reaction System Temperature Control Water bath37±0.1℃, real-time monitoring
Cuvettes 160reusable cuvettes, optical length 6mm
Mixer Probe Independent stirring
Washing Automatic cuvettes washing
STAT function YES
Optical System Light Source 12V/20W halogen lamp/fiber bragg grating optional
Spectrophotometry Post-spectral spectrophotometry
Wavelength 12 wavelength from 340~800nm
Absorbance 0~3.5Abs
Calibration & QC Calibration

Linear:K factor, 1-point ,2-point and multipoint linear

Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P
Quality Control Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Data Management Software Windows 7/8/10 , 32or 64bit
LIS System Bi-direction,support HL7 protocol
Interface LAN port access
Printer External,multiple reporting mode available
Working Conditions Power Supply AC220V±10% 50/60Hz, 110V±10% 60Hz, 1500W
Temperature 15～30℃（±2℃）
Water Consumption Deionized water:25L/H
Humidity 40~85%
Size & Weight External Size (W*D*H) 1360*795*1155mm
Net Weight 290kg
Package Size (W*D*H) 1718*958*1427mm
Gross Weight 400kg
