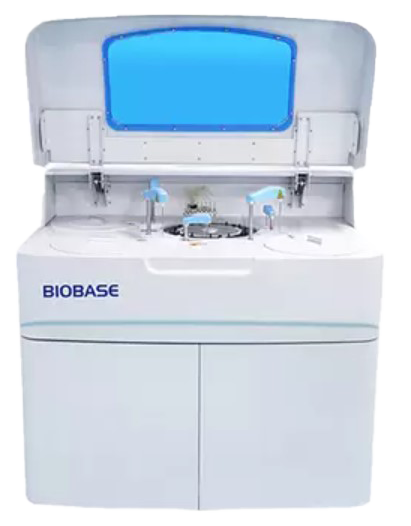

Auto Chemistry Analyzer BK-600

Add to quote
Category:

Description

Features:

  • 600 Tests per hour.
  • 120 Reaction cuvettes.
  • 180 Refrigerated reagent positions.
  • Built-insample barcode system optional.
  • 90 Sample positions(120 sample positions optional).
  • Probe with anti-collision function, liquid level detection function.

Models:



Model BK-600

Overall

Performance

 Throughput 600Tests/hour
Analysis Method End-point, Fixed-time, Rate, Two-point, Turbidimetry
Certification CE, FDA, ISO9001, ISO14001, ISO13485



Sample & Reagent System

 Sample Positions 90sample positions, built-in barcode system available
Reagent Positions 180refrigerated reagent positions(R1:45 & R2:45)
Sample Volume 2-70μL
Reagent Volume 20-350μL
Probe Washing Automatic washing interior and exterior
Reagent Cooling 2~8℃



Reaction System

 Temperature Control 37±0.1℃, real-time monitoring
Cuvettes 120reusable cuvettes, optical length 6mm
Mixer Probe Independent stirring
Washing Automatic cuvettes washing
STAT function YES
Optical System Light Source 12V/30W halogen lamp
Spectrophotometry Post-spectral spectrophotometry
Wavelength 340,405,450,480,505,546,570,600,630,700,750,800nm
Absorbance 0~3.5Abs
Calibration & QC Calibration 1-point, 2-point and multipoint, factor, Spline Logit-4P, Logit-5P
Quality Control Inserting quality control at random
Data Management Software Windows 7/8/10
LIS System Available
Interface LAN port access
Printer External,multiple reporting mode available
 Working Conditions Power Supply AC220V±10%,50/60Hz, 110V±10%,60Hz,800W
Temperature 15～30℃
Water Consumption Deionized water:10L/H
Humidity 40~85%
Size & Weight External Size (W*D*H) 1170*775*1145mm
Net Weight 216kg
Package Size (W*D*H) 1348*928*1377mm
Gross Weight 280kg
Accessory Package Size 728*598*651mm
Accessory Gross Weight 70kg
