Description

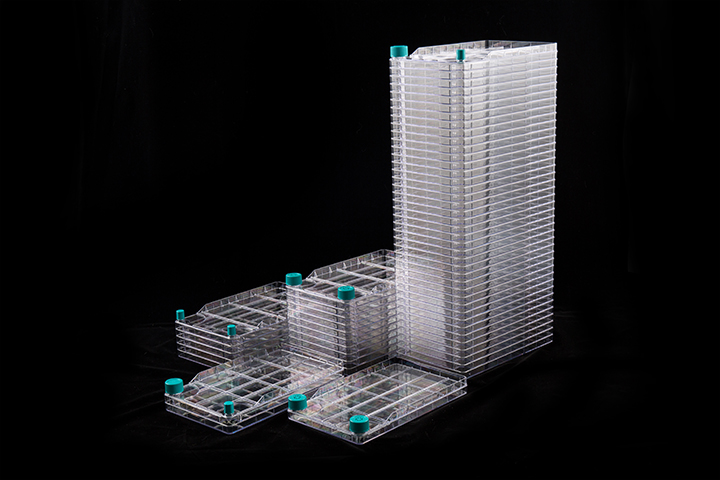

The system of Biofactory 10 Chambers (with tube) realizes the closed transfer of liquid, which can directly transfer the culture medium or cells to a cell factory or a bioreactor through a connecting tube in a sterile environment, greatly reducing the risk of exogenous pollution in the drug development and production process, simultaneously omitting the operations of tube design, assembling and sterilization, therefore, improving the production efficiency.
Layer:1 Layer, 2 Layers, 5 Layers, 10 Layers, 40 Layers
Features
• Pre-assembled radiation-resistant high throughput air filter, pervious and resistant to bacteria, ensuring sterility and high flow rate.
• Closed liquid transfer, avoiding open operation and reducing the risk of pollution in the process of liquid transfer.
• The liquid inlet tube can be aseptically welded under a normal environment
• High-quality materials and smooth inner wall of the tube, ensuring an excellent transmission performance
• Electron beam sterilization, SAL = 10-6
• No endotoxin and no components of animal origin
Cat.No. | Layer | Cap Style |
Cultivation area (cm²) |
/Case |
771204 | 5 | 2 Wide Vent Caps (with extra 8 sterile wide plug seal caps packaged separately) |
3160 | 4 |
771302 | 10 | 2 Wide Vent Caps (with extra 12 sterile wide plug seal caps packaged separately) |
6320 | 6 |
771403 | 40 | 2 Wide Vent Caps (with extra 4 sterile wide plug seal caps packaged separately) |
25280 | 2 |
772001 | 1 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with extra 8 sterile narrow vent caps & 8 sterile narrow plug seal caps packaged separately) |
647 | 8 |
772101 | 2 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with extra 8 sterile narrow vent caps & 8 sterile narrow plug seal caps packaged separately) |
1279 | 8 |
772204 | 5 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with extra 4 sterile narrow vent caps & 4 sterile narrow plug seal caps packaged separately) |
3175 | 4 |
772302 | 10 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with extra 8 sterile narrow vent caps & 8 sterile narrow plug seal caps packaged separately) |
6335 | 6 |
772403 | 40 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with extra 2 sterile narrow vent caps & 2 sterile narrow plug seal caps packaged separately) |
25295 | 2 |
771001 | 1 | 2 Wide Vent Caps (with extra 16 sterile wide plug seal caps packaged separately) |
632 | 8 |
771101 | 2 | 2 Wide Vent Caps (with extra 16 sterile wide plug seal caps packaged separately)) |
1264 | 8 |
