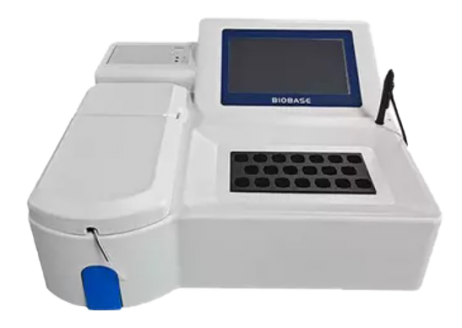

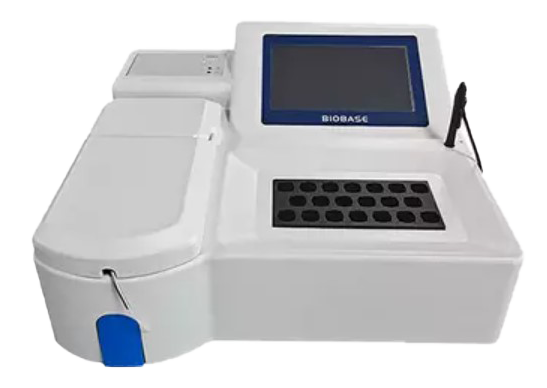

Semi-auto Chemistry Analyzer

SKU: N/A Category:

Description

Features:

  • Easy operation by one button.
  • End point, kinetic, fixed time, rate, etc.
  • Filter wavelength: 340/405/450/510/546/578/630nm, 2 more open filter positions, others on request.
  • With 20 incubating positions.
  • Large Memory to store 144 test programs and 5600 testing results.
  • Excellent Q.C function, Q.C chart can be stored, displayed and printed.
  • 37℃ temperature in flow cell and incubating.
  • Real time graph can be displayed and printed.

Models:

Model BIOBASE-Silver



Reading cuvette



Quartz cuvette; Both through cell and direct reading cuvette



Incubating positions



20 incubating positions









Photometric System



Light source: 6V, 10W long life halogen lamp



Filters: 340/405/450/510/546/578/630nm, 2 more open filter positions



Wavelength accuracy: ±2nm













Measuring System



Measuring range: 0~3.500O.D.



Photometric linearity: ±2% from 0 to 2.500 O.D.



Photometric accuracy: ±2% from 0 to 2.500 O.D.



Drift<0.005 O.D.



Incubator Temperature



R.T. 25℃, 30℃, 37℃



Control



Precision: ±0.1℃



Display



Touch Screen



Printer



Built-in thermal printer



Interface



RS-232, USB



Power Supply



AC110/220V±10%, 60/50Hz



External Size(W*D*H)



400*380*200mm



Packing Size(W*D*H)



500*530*350mm



Gross Weight



12kg

Additional information

Brand

Biobase
