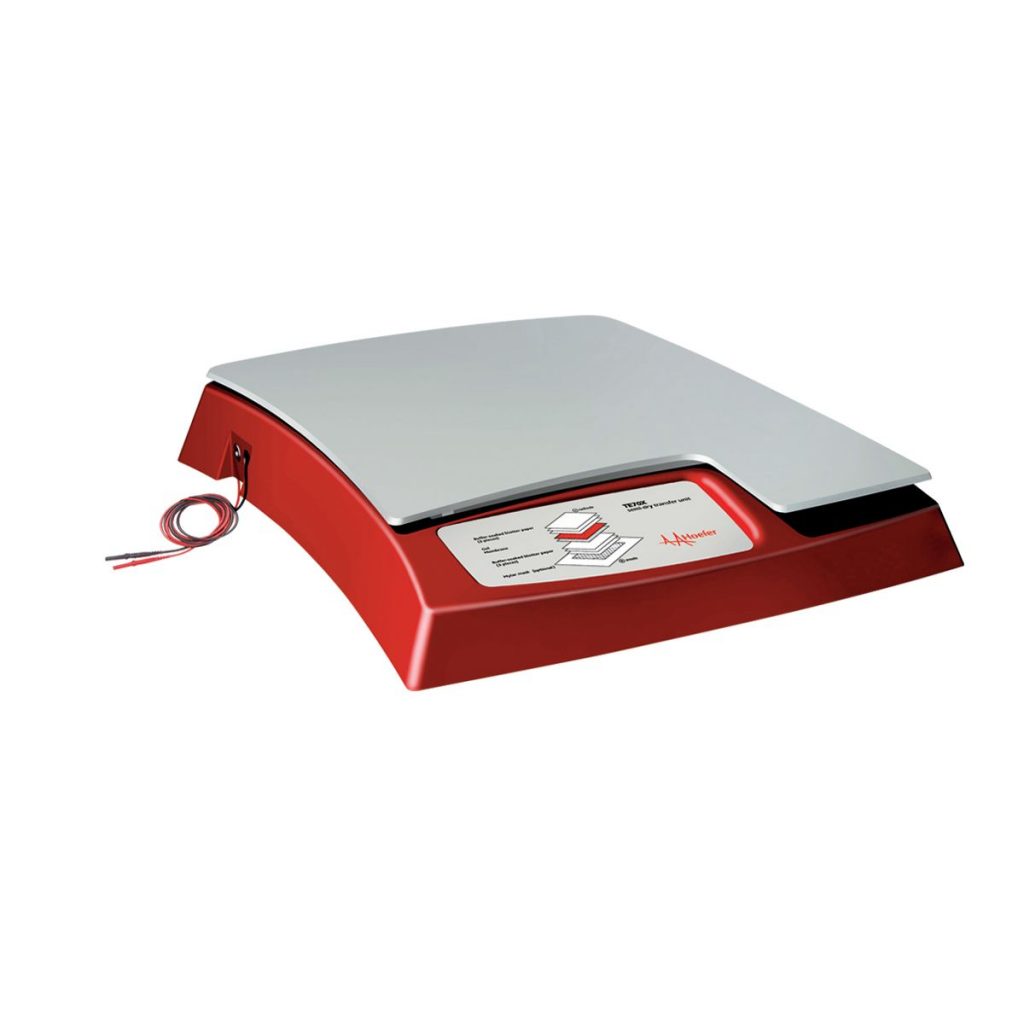

TE70X & TE77X Semi-Dry Transfer Units

Description

The TE70X and TE77X Semi-Dry Transfer Units are efficiently designed to use minimal buffer to transfer proteins from polyacrylamide gels in less than an hour. They support as many as two layers of gels being transferred simultaneously. The TE70X has a 14 x 16 cm maximum transfer area which can handle up to four mini gels using the stacked format. The TE77X has a 21 x 26 cm transfer area for a capacity of up to 12 mini gels at one time.

Features & Benefits:

• Included safety circuit breaker—limits voltage and current from the user’s power supply, preventing electrical damage to the transfer unit
• Requires minimal current—does not generate the excessive heat that can dry out the transfer stack and halt transfer or damage transfer units
• Durable iridium oxide and stainless steel electrodes—allow for contamination free, consistent transfer
• Vented electrodes—prevent buildup of bubbles which may impair transfer
• Minimal buffer requirements—reagent cost and preparation time are reduced

All units have:

• Molded Base with Platinum-Coated Titanium Anode and High Voltage Leads
• Hinged Lid with Stainless Steel Cathode

The TE70X includes:

• Blotting Paper (14 x 16 cm), 25 sheets
• Porous Cellophane (20 x 35.5 cm), 50 sheets
• Mylar® Masks (16.5 x 18.5 cm), 2 pcs

The TE77X includes:

• Blotting Paper (21 x 26 cm), 25 sheets
• Porous Cellophane (20 x 35.5 cm), 50 sheets
• Mylar® Masks (23 x 27.5 cm), 2 pcs

Specification
